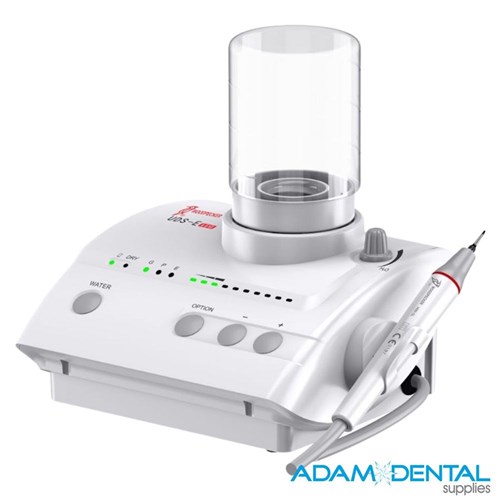

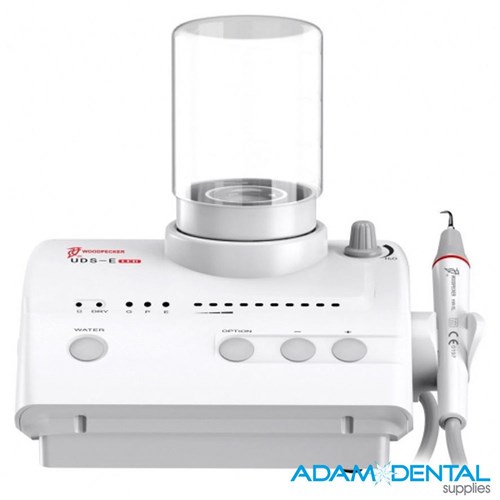

Woodpecker UDS-E LED Ultrasonic Scaler
12 Month Warranty
Kit Contents:1 x UDS-A ultrasonic scaler, Detachable LED handpiece (with EMS Connection), Foot pedal, Power wire, Torque wrench

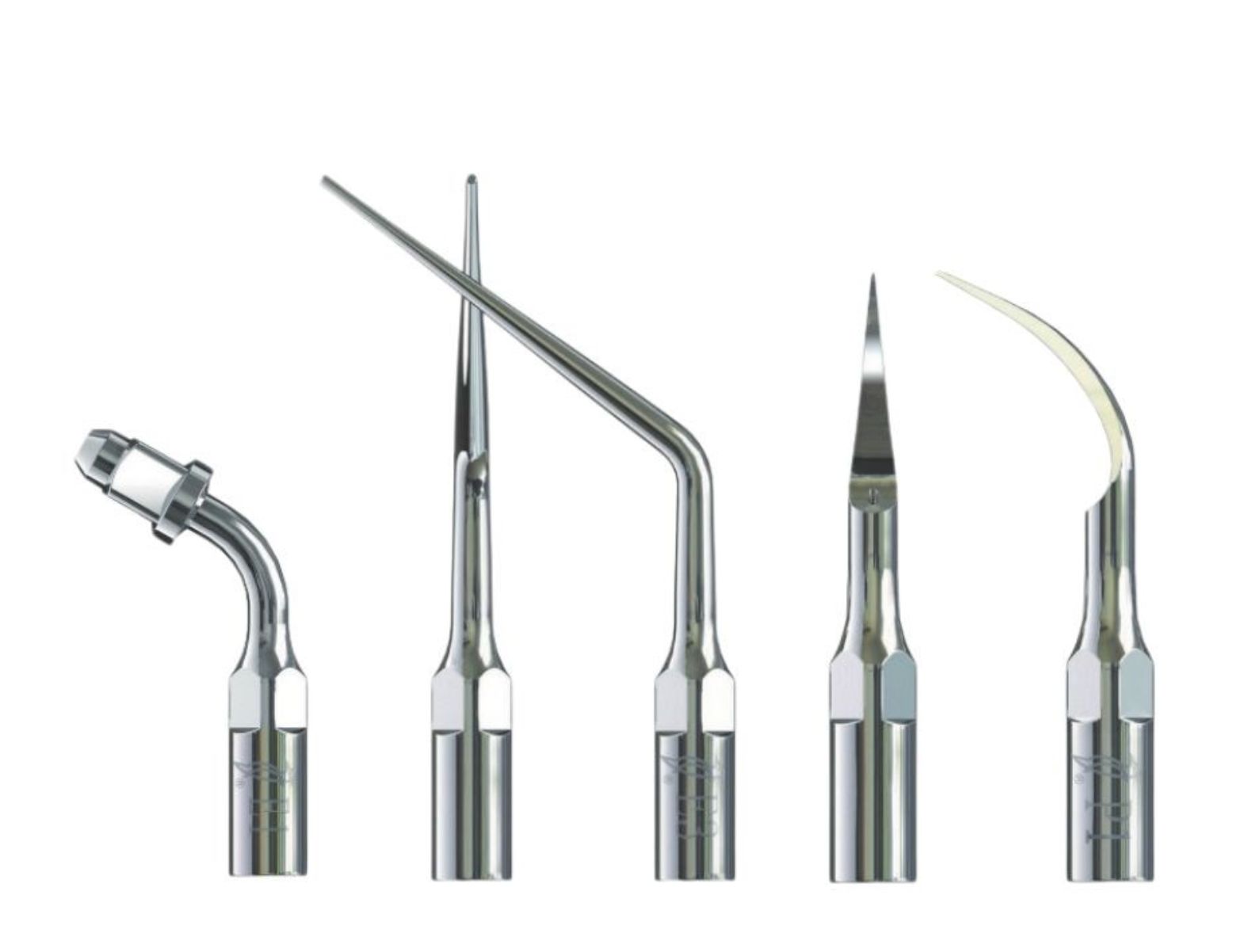

Included Free: 6 x Scaling tips (G1x2, G2x1, G4x1, P1x1, E1x1) , 4 K-Files: 4 x NiTi K-Files (#15, #20, #25, #30)
Features:
- UDS-E LED scaler has scaling, perio, endo and auto-water supply functions
- With auto-water supply function, easier operation.
- The inner water pipe is made from antiseptic material, clinical fluids, such as Hydrogen peroxide, chlorhexidine and sodium Hypochlorite, etc, can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically.
- The handpiece is detachable and can be autoclaved to the temperature of 135℃ and the pressure of 0.22MPa.
- Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
- Controlled by PC, easy operation and more efficient for scaling.
- The scaler is composed of electro circuit, waterway and ultrasonic transducer.
- UDS-E LED is used for the dental calculus elimination and root canal treatment.

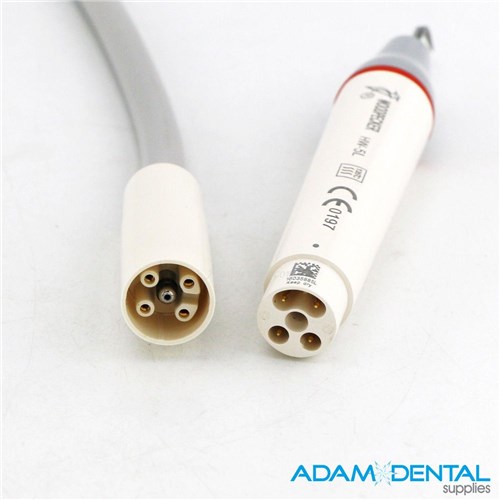

- Optical handpiece, more convenient for clinical operation.
The Woodpecker UDS-E LED Ultrasonic Scaler delivers superior precision and reliability, tailored for Australian dental professionals and clinics. This advanced periodontal and endodontic scaler features an ergonomic, lightweight design that reduces operator fatigue and enhances clinical workflow. Its detachable LED handpiece provides bright, focused illumination, significantly improving visibility and treatment accuracy in challenging intraoral conditions. The scaler’s automatic frequency tracking and piezoelectric technology ensure stable, strong performance for efficient calculus, plaque, and stain removal without damaging gums or enamel. Its antimicrobial water tubing enables the use of essential clinical fluids, boosting disinfection and patient comfort. Complete with 8 free multipurpose scaling tips, including G1, G4, G5, G6, and endodontic pins, this unit is EMS compatible and meets Australian infection control requirements with autoclavable components. Backed by Adam Dental Supplies’ trusted service and 12-month warranty, the UDS-E is a top choice for Australian dental professionals seeking premium, cost-effective dental equipment.
Specifications:
- Power source input: 220 - 240V, 50Hz/60Hz, 150mA
- Main unit input: 24V - 1.3A
- Output primary tip vibration excursion: ≤100um
- Output half-excursion force: ＜2N
- Output tip vibration frequency: 28kHz ± 3kHz
- Output power: 3W to 20W
- Main unit fuse: T 1.6AL 250V
- Power source fuse: T0.5AL 250V
- Water pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa)
- Weight of main unit: 1.17kg
- Weight of power source: 1.2kg
- Dimension: 234mm x 193mm x 109mm
- Operating mode: Continuous operation
- Type of protection against electric shock: Class II
- Degree of protection against electric shock: Type BF applied part
- Applied part of the equipment: handpiece and tip
- Degree of protection against harmful ingress of water: Ordinary equipment (IPX0), Protection degree against water (used on the foot switch): IPX1
Frequently Asked Questions (FAQ)
How many tips come with the scaler?
The Woodpecker UDS-E includes 6 free tips covering general scaling, perio, and endo applications.
Is the handpiece sterilizable?
Yes, the detachable handpiece is autoclavable at 135°C and 0.22MPa to meet infection control standards.
Can I use this scaler for endodontic procedures?
Absolutely, it is designed for multi-function use including scaling, periodontal, and endodontic treatments.
Is it compatible with EMS handpieces and tips?
Yes, it supports EMS-compatible handpieces and tips widely used in Australian dental practices.
What warranty does it have?
The product comes with a 12-month warranty when purchased through Adam Dental Supplies.
